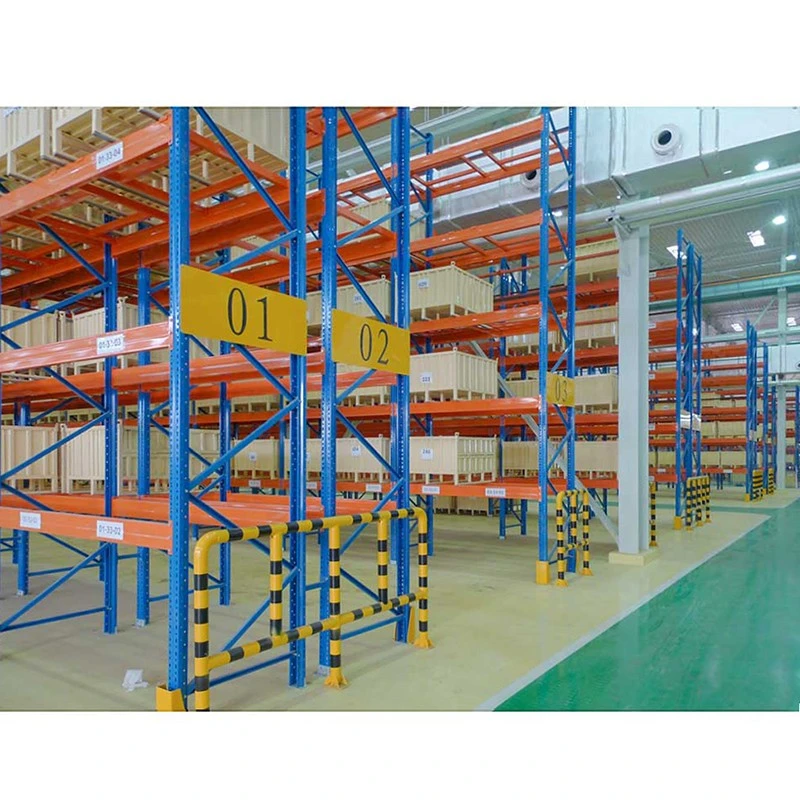

Adjustable pallet racking yog qhov dav siv ntau thiab tus nqi tsim nyog siv khib nyiab. Nws yog siv rau cov khoom lag luam pallet. Thaum nruab nrog pallet kev txhawb nqa, nws yuav haum sib txawv pallet loj. Nrog nqaj qhov siab tau kho tau yooj yim, nws haum cov pallet chav tsev qhov siab. Qhov ntsuas hluav taws xob, cov khoom thauj ib theem ntawm 500 rau 4000kgs. Qhov rack qhov siab yuav yog siab li 12 metres ib thooj.
Txhawm rau tsim cov kab sib tw, peb yuav them sai sai rau cov ntaub ntawv hauv qab no:
L: Ntshiab ntev ntawm ob qho chaw nyob ze
L1: Ze Ntawm Pallet Chav Ntug Mus Saib
L2: Deb deb ntawm ob daim duab pallets
L3: Ze Ntawm Pallet Chav Ntug Mus Saib
LP: PALLET UNITE LUAG
HP: Pallet Chav Qhov Siab
H: Khib qhov siab
H1: Thawj nqaj theem saum toj mus rau pem teb
H2: Deb nrug ntawm ob theem uas nyob ib sab
H3: Cov nqaj nqaj saum toj mus rau hauv pem teb, uas yuav cuam tshuam los ntawm forklift ncav qhov siab
H4: Txhua qhov siab tshaj suav nrog Sab saum toj Pallet Chav Thauj Khoom
H5: Ntshiab qhov siab nyob saum ntuj nqaj theem
HC: Ntshuam qhov siab ntawm Pallet chav tsev rau nqaj hauv qab saum toj
Z1: LIAB TUAG DEB
Z2: Lite Pallet Protrude Khib
D: rack tob
DP: Pallet tob
Piv nrog heev nqaim aisle pallet khib, dav aisle pallet khib xav tau meej aisle aisle aisle, ib txwm tshaj 3200 hli. Cov tswv yim aisle dav nyob ntawm koj forklift thiab pallet nthuav dav. Thov paub meej tias cov lus qhia no nrog koj tus kws xa khoom forklift.
Txhawm rau ua kom tau raws li lub nra sib txawv thiab loj hlob, peb muaj ntu sib txawv thiab nqaj sib txawv rau kev xaiv. Xws li upright nrog qhov loj ntawm 80 * 60 hli, 90 * 68 hli, 100 * 68 hli, 160 * 50 hli, 180 * 50 hli *
Beam load rooj:
| Qhov luaj li cas nqaj loj (hli) | Nqaj Span ntev (hli) | |||
| 2300 | 2500 | 2700 | 3600 | |
| Thauj ib khub nqaj (kg) | ||||
| 80*50*1.5 | 1428 | 1209 | 1036 | 583 |
| 90*50*1.5 | 1909 | 1616 | 1386 | 779 |
| 100*50*1.5 | 2397 | 2028 | 1739 | 978 |
| 110*50*1.5 | 2994 | 2534 | 2173 | 1222 |
| 120*50*1.5 | 3671 | 3107 | 2664 | 1499 |
| 130*50*1.5 | 4287 | 3629 | 3111 | 1750 |
| 140*50*1.5 | 3831 | 2155 | ||
| 160*50*1.5 | 2920 | |||
Tus nqi qis thiab saj zawg zog cia thiab nqa-up ua cov khib feem ntau siv nyob rau hauv lo lus. Nws yog qhov haum rau cov khoom sib txawv thiab cov xwm txheej.
Los ntawm sab saum toj sab xis rau sab saum toj txoj cai: rau plywood cia, rau lub logistic Center, rau cov pallitistic Center, rau chav pallet thiab kev ua haujlwm ntawm kev ua haujlwm cia,
Los ntawm hauv qab sab laug mus rau hauv qab txoj cai: compound khib nrog hauv qab txee, galvanized tiav rau sab nraum zoov cia, rau reel khoom cia.
Cim npe nrov: dav aisle adjustable Adjet racking, Tuam Tshoj dav aisle adjectable pallet racking manufacturers, lwm tus neeg, Hoobkas
